Intro: Secret gadgets in power electronic devices
Silicon-controlled rectifiers (SCRs), additionally referred to as thyristors, are semiconductor power gadgets with a four-layer triple joint structure (PNPN). Given that its intro in the 1950s, SCRs have been commonly used in industrial automation, power systems, home appliance control and various other areas as a result of their high endure voltage, huge present carrying capacity, fast response and easy control. With the development of innovation, SCRs have actually advanced into lots of kinds, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions between these kinds are not only mirrored in the framework and functioning concept, but likewise establish their applicability in various application circumstances. This post will start from a technological viewpoint, incorporated with particular criteria, to deeply examine the primary differences and normal uses of these four SCRs.
Unidirectional SCR: Basic and steady application core
Unidirectional SCR is the most standard and common sort of thyristor. Its framework is a four-layer three-junction PNPN arrangement, consisting of three electrodes: anode (A), cathode (K) and gate (G). It just permits existing to stream in one instructions (from anode to cathode) and switches on after the gate is caused. When turned on, even if the gate signal is gotten rid of, as long as the anode current is greater than the holding current (typically much less than 100mA), the SCR continues to be on.

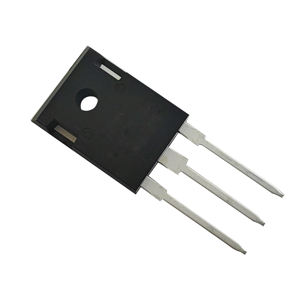

(Thyristor Rectifier)
Unidirectional SCR has strong voltage and current tolerance, with an ahead repeated top voltage (V DRM) of as much as 6500V and a ranked on-state ordinary existing (ITAV) of approximately 5000A. For that reason, it is extensively used in DC motor control, industrial heating systems, uninterruptible power supply (UPS) correction components, power conditioning tools and other occasions that need continuous conduction and high power handling. Its benefits are basic structure, low cost and high dependability, and it is a core component of many traditional power control systems.
Bidirectional SCR (TRIAC): Suitable for air conditioning control
Unlike unidirectional SCR, bidirectional SCR, additionally called TRIAC, can accomplish bidirectional transmission in both favorable and unfavorable half cycles. This framework consists of 2 anti-parallel SCRs, which permit TRIAC to be activated and activated at any time in the air conditioning cycle without changing the circuit link approach. The in proportion conduction voltage series of TRIAC is typically ± 400 ~ 800V, the maximum load current has to do with 100A, and the trigger current is less than 50mA.
Because of the bidirectional conduction characteristics of TRIAC, it is especially appropriate for a/c dimming and speed control in family home appliances and consumer electronics. For instance, devices such as light dimmers, follower controllers, and a/c unit fan speed regulators all count on TRIAC to achieve smooth power policy. Furthermore, TRIAC additionally has a lower driving power demand and appropriates for incorporated style, so it has been widely utilized in clever home systems and little appliances. Although the power thickness and switching rate of TRIAC are not as good as those of new power tools, its inexpensive and convenient use make it an essential gamer in the field of tiny and moderate power air conditioning control.
Entrance Turn-Off Thyristor (GTO): A high-performance rep of active control
Gateway Turn-Off Thyristor (GTO) is a high-performance power tool established on the basis of standard SCR. Unlike regular SCR, which can only be switched off passively, GTO can be turned off actively by applying a negative pulse current to eviction, thus achieving even more flexible control. This attribute makes GTO execute well in systems that need frequent start-stop or quick response.

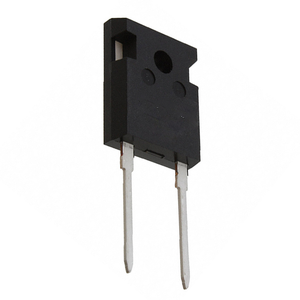

(Thyristor Rectifier)
The technological parameters of GTO reveal that it has very high power taking care of capability: the turn-off gain has to do with 4 ~ 5, the optimum operating voltage can get to 6000V, and the optimum operating current is up to 6000A. The turn-on time has to do with 1μs, and the turn-off time is 2 ~ 5μs. These efficiency indications make GTO extensively made use of in high-power situations such as electric engine grip systems, huge inverters, industrial motor frequency conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is relatively intricate and has high changing losses, its efficiency under high power and high vibrant feedback needs is still irreplaceable.
Light-controlled thyristor (LTT): A trustworthy choice in the high-voltage seclusion setting
Light-controlled thyristor (LTT) makes use of optical signals as opposed to electrical signals to cause transmission, which is its greatest function that identifies it from various other types of SCRs. The optical trigger wavelength of LTT is normally in between 850nm and 950nm, the reaction time is gauged in nanoseconds, and the insulation level can be as high as 100kV or over. This optoelectronic isolation mechanism substantially boosts the system’s anti-electromagnetic interference capacity and safety and security.
LTT is mainly utilized in ultra-high voltage direct existing transmission (UHVDC), power system relay security tools, electromagnetic compatibility defense in medical tools, and army radar interaction systems and so on, which have incredibly high requirements for security and security. For example, several converter stations in China’s “West-to-East Power Transmission” task have actually taken on LTT-based converter valve components to ensure steady operation under incredibly high voltage problems. Some advanced LTTs can additionally be incorporated with entrance control to accomplish bidirectional transmission or turn-off features, better broadening their application range and making them an ideal option for solving high-voltage and high-current control issues.
